Palm Oil Liquid Waste Processing
PRODUCTS AND TECHNOLOGY
ENVIRONMENTALLY FRIENDLY
No chemicals required to remove contamination
EARTH FRIENDLY
Through wastewater treatment, the amount of liquid waste disposed of will be reduced thereby improving the health of the surrounding environment
NO COSTS
A small volume of waste will reduce costs for managing it. On-site water recycling lowers costs and risks. Improve environmental performance and reduce the risk of future licensing regulations
SUSTAINABLE ENVIRONMENT
Environmental sustainability will support individual and community welfare and support a better economy if waste is processed and reused so that it does not cause environmental damage. Apart from that, the use of this technology can increase job opportunities
WHAT'S THAT
AquaEco
A Palm Oil Factory Liquid Waste Treatment system that can separate WATER and SOLID so that the factory does not need a Waste Pool. This will produce reusable and solid water which can be sold as animal feed or used as fertilizer .
AquaEco is a unique liquid waste treatment with a sophisticated hybrid system. Which combines electro-coagulation & electro-oxidation cells to process water flows in a simple way through one process so that finally the water becomes suitable for reuse.
The hybrid electrochemical AquaEco is a fully automated, skid mounted, containerized waste treatment system designed for continuous operation that will convert waste into reusable water and can be operated even in remote locations.
TECHNOLOGY FOR SUSTAINABILITY
ENVIRONMENT & SUSTAINABILITY
• Easy unit installation with a containerized system and easy to expand
• Easy to operate and maintain
• Produces quality non-drinking processed water which can be applied in factory processing or as boiler feed water
• Local technology without using microbes or special chemicals
• Reduces odors and greenhouse gas (GHG) emissions by eliminating conventional anaerobic pond systems
• Producing Green Hydrogen as an alternative energy source
MODEL & CAPACITY
AQUAECO
| AquaEco models | Processing Power | Factory Capacity | POME (M3/HR) |
|---|---|---|---|
| POW – 0.6 MLD | 600 M3/Day (25 M3/Hr) | 30-33 TPH POM | POME = 33×60% 20 |
| POW – 1.2 MLD | 1200 M3/Day (50 M3/Hr) | 60-65 TPH POM | POME = 65×60% 42 |
| POW – 2.4 MLD | 2400 M3/Day (100 M3/Hr) | 90-130 TPH POM | POME = 130×60% 78 |
| POW – 3.6 MLD | 3600 M3/Day (150 M3/Hr) | 200 TPH POM | POME = 200×60% 120 |
| POW – 4.8 MLD | 4800 M3/Day (200 M3/Hr) | 265 TPH POM | POME = 265×60% 159 |
POME
RAW - PROCESSED - STANDARD
| Parameter | Units | Raw Waste | Processed Waste | Standards (Ministry of Environment Regulation No.5, 2014) |
|---|---|---|---|---|
| pH | 4-5 | 5-9 | 6-9 | |
| BOD | mg/L | ±25,000 | < 50 | < 100 |
| COD | mg/L | ±50,000 | < 300 | < 350 |
| O & G | mg/L | ±6,000 | < 2 | < 25 |
| TSS | mg/L | ±20,000 | < 100 | < 250 |
| Total Nitrogen (N) | mg/L | ±600 | < 20 | < 50 |
| Color | Dark Chocolate | Colorless | Colorless | |
| Smell | Smelly | No Smell | No Smell |
BASIC PRINCIPLES
AquaEco

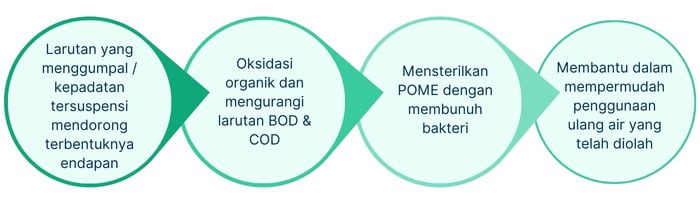

ADVANCED HYBRID ELECTRO-CHEMICAL TECHNOLOGY
Aqua Jaya Resources Sdn Bhd
The combination of these 2 reactors uses certain metals which have proven to be very good at managing POME processing.
TECHNOLOGY
APPROPRIATE
What can be removed?
This is highly efficient in removing:
- ORGANIC
- SUSPENED SOLIDS
- TURBIDITY
- ALGAE
- SMELL
- COLOR
- WATER DISINFECTION
- FATS & OILS
- HEAVY METAL
